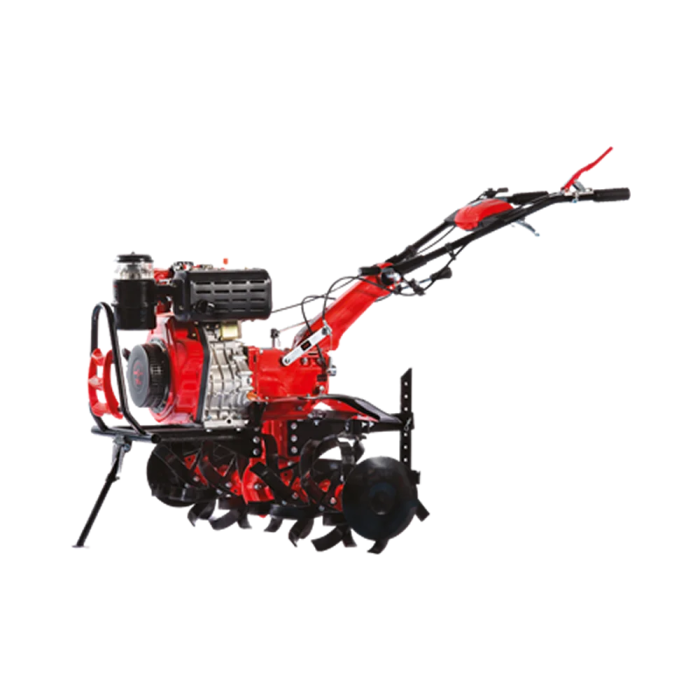

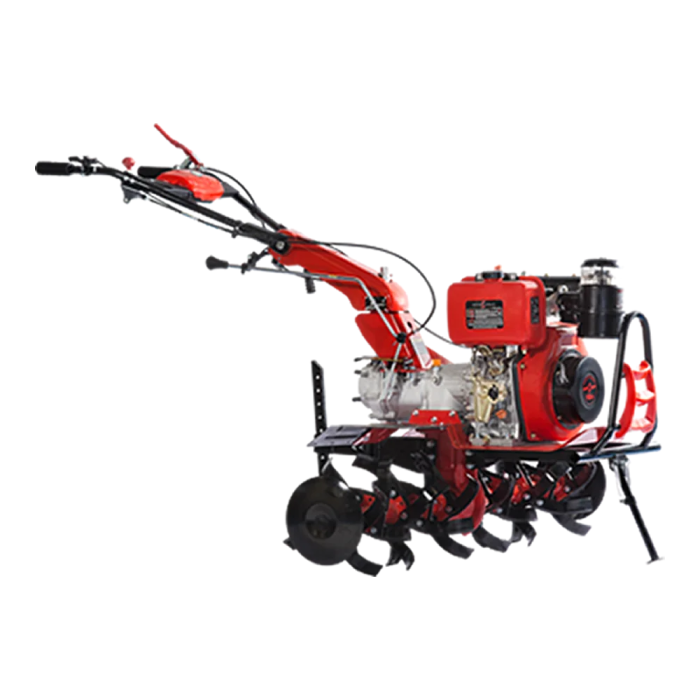

GH135D (7.5 HP-Gear Transmission Power Weeder)

Home / Products / GH135D (7.5 HP-Gear Transmission Power Weeder)

GH135D (7.5 HP-Gear Transmission Power Weeder)

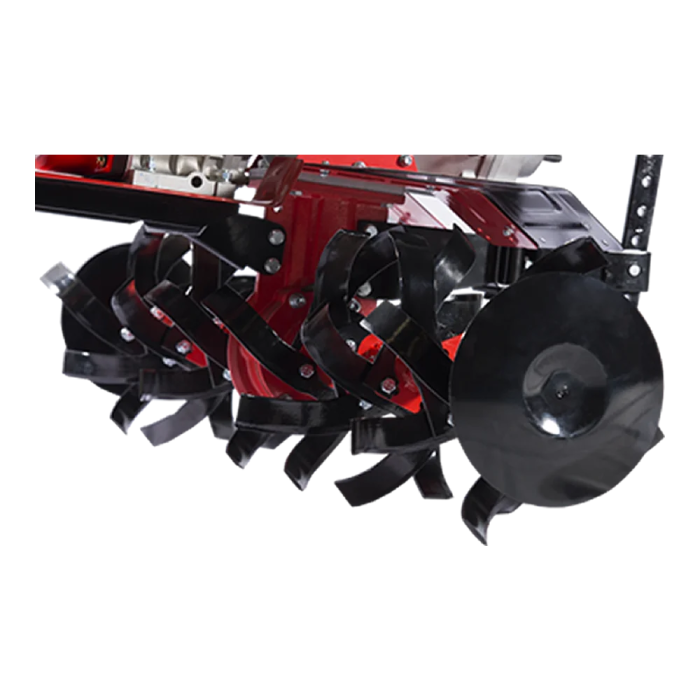

This is a front tyne weeder model of power weeder that is used for tilling soil and removing weeds. It has tynes that are located at the front of the machine and are used to dig into the soil. The machine is then pushed forward to till the soil and remove weeds. This weeder is powered by a 9 Hp 4 stroke Diesel Engine with a working width of 4.5 feet. This weeder is suitable of weeding in sugarcane, Banana, cotton, tobacco, curry leaves, coconut, mulberry, coco, amla, orange apple, sapota and vegetables. It is also suitable in orchard crops like grapes, saffron. It can also be used in wet land puddling in paddy field.

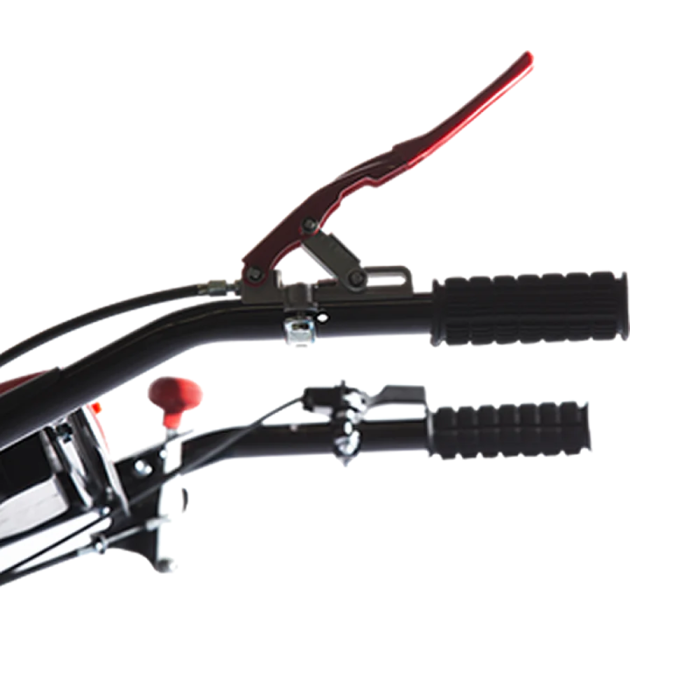

This weeder has adjustable handle and is light in weight with high rotovator speed and adjustable working width. It has high weeding efficiency and more area coverage and has 2 -forward and 1-reverse gears.

Download PDF

DESCRIPTION

Specs

Item Specification
Engine Model HSD186FA
Fuel Diesel
Rated Power (kW/r/min) 5.45/3600
Starting Mode Recoil/Electric Start
Transmission Type Gear
Gear Shifting 2F+1R
Tilling Width (Ft) 4.5
Tilling Depth (Inches) 6-8

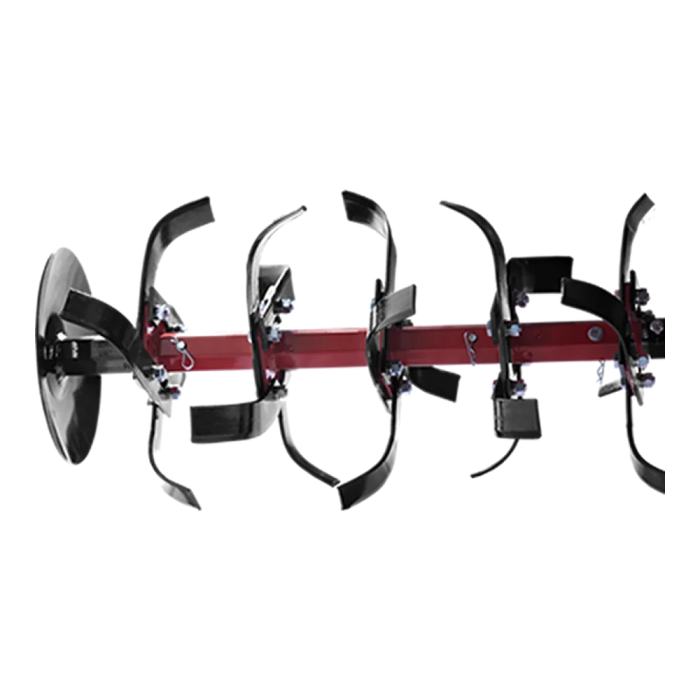

No. of Blades 20 + 20
Tyre Type 4.0 – 8
Packing Dimension (mm) 1010X580X780
Net Weight (kg) 120
